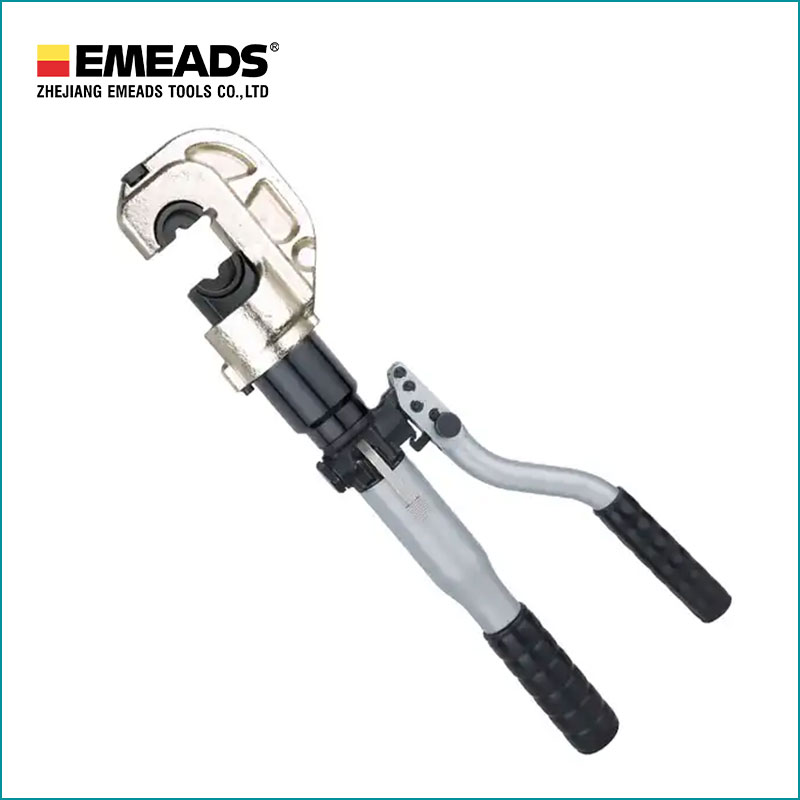

Copper and Aluminum Terminal Crimping Tool

EMEADS latest manual copper and aluminum terminal crimping tool is light in weight, labor saving in operation, long service life of the crimping joint die and heavy load resistance. It is usually used in the manufacturing process of cable crimping and other metal wire crimping. Zhejiang EMEADS Tools Co., Ltd as a professional high quality Hydraulic Tools manufacture, you can rest assured to buy hydraulic crimping tools from our factory and we will offer you the best after-sale service and timely delivery. In addition to the product list below, you can also customize your own unique Hydraulic Tools according to your specific needs.

Send Inquiry

Product Description

The tool features with C type head. You can inter change able diea of different sizes freely. For ease of operatin and comfort the operator can make the tool head fully rotated tool 350°. Emeads copper and aluminum terminal crimping tool has double quick action. A double speed action reflected by a fast advancing speed for rapid approach of the crimping die the connector and a slower more powerful speed for crimping. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, automatically pressure release. After crimping, it will retract manually.

Parameter (Specification)

Technical data	HT-400
Crimping force	120KN
Crimping range	Cu16-400mm²
Crimping type	Hexagon crimping
Stroke	42mm
Length	540mm
Weight	6.3kg
Package	Steel case
Accessories
Crimping dies	16,25,35,50,70,95,120,150,185,240,300,400mm²

Product Description

Crimping range	Cu 50-400 sq.mm
Stroke	42m
Crimping force	120KN
Weight	6.4kg
Package	plastic box
Weight of box	1.70kg
Crimping dies	16,25,35,50,70,95,120,150,185,240,300,400 sq.mm
