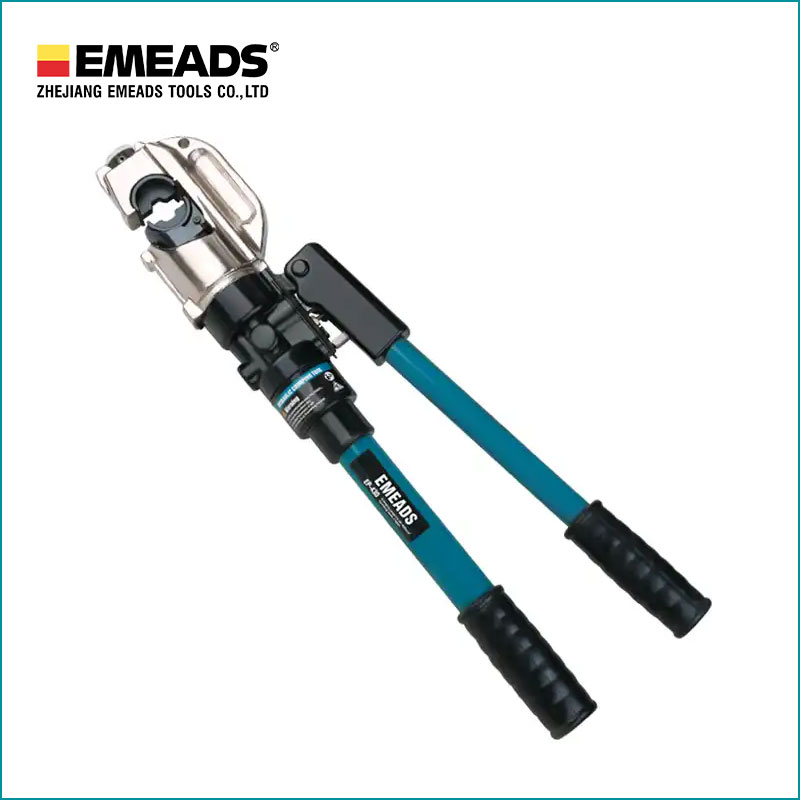

Large Square Manual Crimping Tool

The EP-430 design toaccommodate hexagonal dies for applying compression lugs to copper, aluminum conductors. Two stage pumping action for rapid ram advance to the connector hold position with minium pumping action. Manual retraction when the max pressure reached by twisting the handle. The glass fiber operation insulates the stick， can bear the electric voltage 200KV, keeping on ten minutes. The large square manual crimping tool with safety system inside and 180°rotatable head. The pressure outside the body adjusts to press the valve, don’t need the whole structure to lie dowm.

Parameter (Specification)

Crimping force:	126KN
Crimping range:	Cu50-400mm²
Stroke:	42mm
Oil capacity:	145cc
Weight:	7.4kg
Package:	Plastic box
Weight of box:	1.7kg
Accessories
Crimping dies:	50,70,95,120,150,185,240,300,400mm²

Trade Shows

FAQ:

1.How about the payment terms?

A: We accept 30% T/T in advance, 70% balance before the delivery. And other payment terms for customized.



2.How do you guarantee your quality?

A: Firstly, quality test in every process. We produce most components by ourselves.

Secondly, we collect all comments on our products from customers in time, then improve quality all the time.



3.Is the whole working procedure finished by your workshop?

A:Most procedures are finished in our workshop, so we can control strictly the quality of components and finished products.Surface color treatment is done outside but we check each batch incoming materials.

4.How about your delivery time ?

A: It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.



5.How long is your warranty period?

A: Standard warranty period is 12 months.



6.How about the packing and shipping?

A: Normally, we have plastic carrying case, carton and foam for packaging. If you have any other special requirements, please feel free to let us know.



7.Where is your factory ? Can I visit your factory?

A: We are in Taizhou city , Zhejiang province, east China. We warmly welcome  customers from all over the world to visit our factory.
