Various Type of Manual Hydraulic Punching Tool
  • Various Type of Manual Hydraulic Punching ToolVarious Type of Manual Hydraulic Punching Tool
  • Various Type of Manual Hydraulic Punching ToolVarious Type of Manual Hydraulic Punching Tool
  • Various Type of Manual Hydraulic Punching ToolVarious Type of Manual Hydraulic Punching Tool
  • Various Type of Manual Hydraulic Punching ToolVarious Type of Manual Hydraulic Punching Tool
  • Various Type of Manual Hydraulic Punching ToolVarious Type of Manual Hydraulic Punching Tool

Various Type of Manual Hydraulic Punching Tool

Since the company’s establishment, Zhejiang EMEADS Tools Co., Ltd. has become a leading domestic professional enterprise engaged in the production and development of transmission and distribution and various type of manual hydraulic punching tool after six years of persistent pursuit and reform and development. The main research and development production of all kinds of pipeline tool, hydraulic crimping tool, cable cutter, electric hydraulic punching tool, jack, etc., the products are widely used in public utilities, industry, construction, energy and other industries of electrical and pipeline construction and connection. The products are produced in strict accordance with ISO 9001 international quality management system. You can rest assured to buy Electric Hydraulic Punching Tool from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

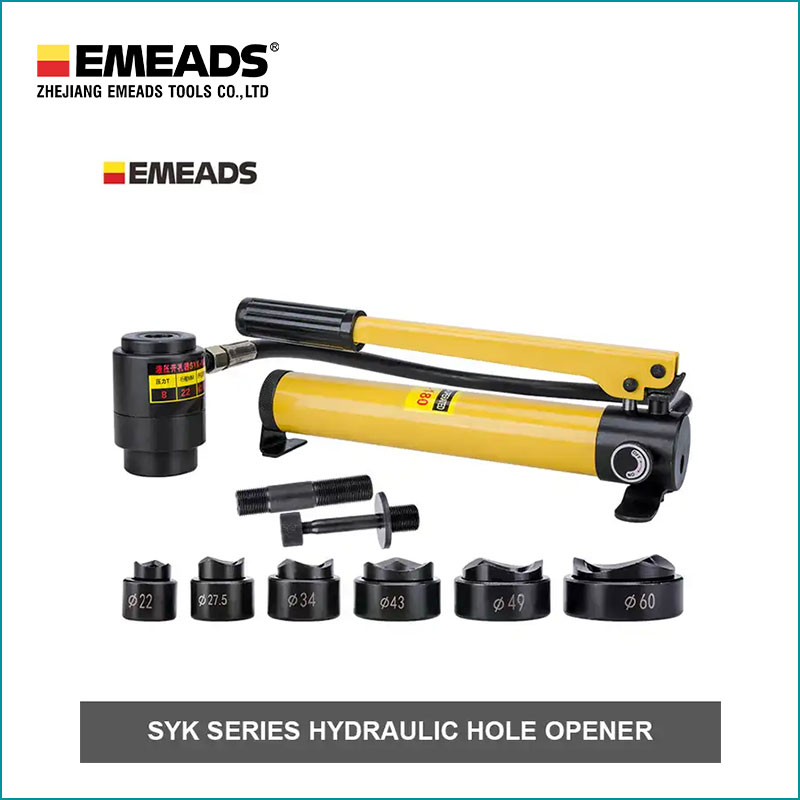

EMEADS specializes in the development of various type of manual hydraulic punching tool. The EB-1220H is suitable for punching operation of distribution box and cabinet. It is a cost-effective and efficient way to make holes in metal. It is also a safer option than using a drill, as it does not require electricity or generate heat. The tool works by using a hydraulic ram to punch the hole in the metal. The tool consists of a long handle attached to a hydraulic cylinder and a digging head. The digging head is designed to penetrate the ground and create a hole. The hydraulic cylinder is used to power the digging head and can be adjusted to increase or decrease the digging force. The tool can be operated manually or with an attached power source.


Details about the pictures

model output
(T)
max stroke
 (mm)
max thickness (mm)
stainless steel iron plate
SYK-8A 8 22 1.6 3
SYK-8B 8 22 1.6 3
SYK-15A 15 22 2 4
SYK-15B 15 22 2 4
SYK-15
(5 sets mould)
15 22 2 4
SYK-15
(6 sets mould)
15 22 2 4
SYK-15
(18 sets mould)
15 22 2 4



model open range
(mm)
mold configuration
(mm)
weight
(kg)
SYK-8A 16-60 16,20,26.2,32.6,39,51 11
SYK-8B 16-60 22,27.5,34,43,49,60 11
SYK-15A 16-114 16,20,26.2,32.6,39,53 13
SYK-15B 16-114 22,27.5,34,43,49,60 13
SYK-15
(5 sets mould)
16-114 63,76,89,101,114 21
SYK-15
(6 sets mould)
16-114 63,76,80,89,101,114 23
SYK-15
(18 sets mould)
16-114 16,20,22,26.2,27.5,32.6,34,3943, 27
43,49,51,60,63,76,80,89,101,114



EMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole PuncherEMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole PuncherEMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole PuncherEMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole PuncherEMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole PuncherEMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole PuncherEMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole PuncherEMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole PuncherEMEADS SKY-8B series Hydraulic Metal Knockout Hole Digger Punching Tool Hydraulic Puncher Tools Hydraulic Hole Puncher
