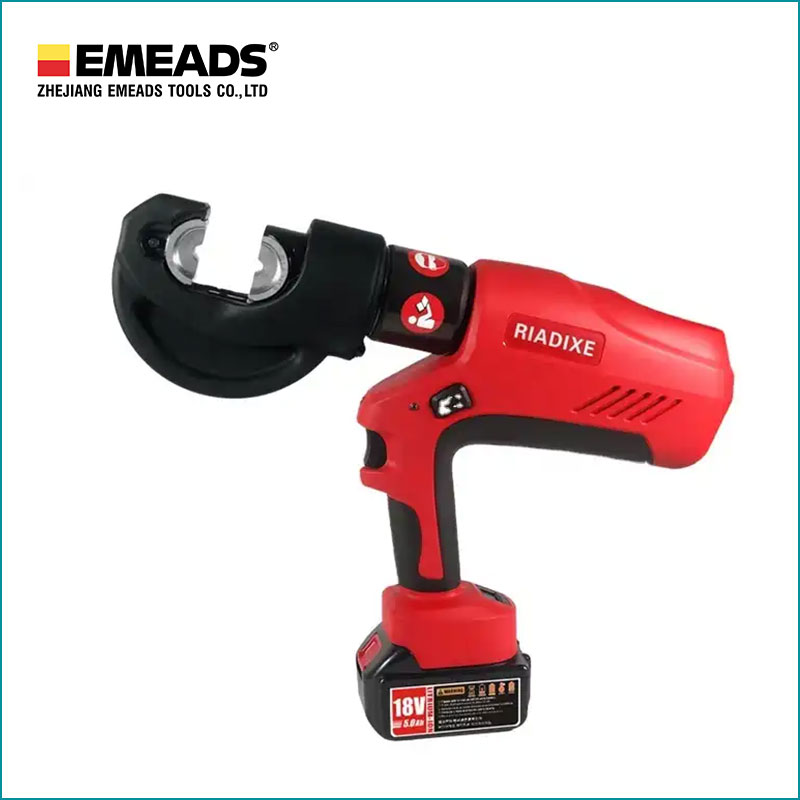

Multifunctional Hydraulic Crimping Tool

The following is the introduction of high quality Multifunctional hydraulic crimping tool, hoping to help you better understand Multifunctional hydraulic crimping tool. Welcome new and old customers to continue to cooperate with us to create a better future! All of our products are up to the international standard(ISO9001). We have received a good reputation both at home and abroad. Our products have been well sold to more than 30 countries,such as America, Brazil, Australia,Italy, Vietam,and the middle east, etc. We look forward to cooperate with you in the near future.

Send Inquiry

Product Description

Zhejiang EMEADS Tools Co., Ltd. is a professional hydraulic tools factory, has more than twenty years history. Our main products cover Multifunctional hydraulic crimping tool, Hydraulic Cylinders, Hydraulic Gear Puller, Hydraulic Pipe Bender, Hydraulic Busbar Processing Machine, Hole Punchers, Angle Iron Cutter, Nut Splitters, Hydraulic Pump, Cutting Tools, etc. Our company has a wide range of business and a rich product line.Our unremitting pursuit of excellent quality and strict production management，ensure that each product of the EMEADS tools can stand up to rigorous testing.

This Emeads Multifunctional hydraulic crimping tool is equipped with microcomputer control system, automatic pressure detection when pressing, double safety protection, with three continuous computer memory pressing function operation. The tool is equipped with a dual plunger pump that features quick access to the connecting material and slow crimp to automatically turn to high pressure.If deviations from the set operating pressure or low battery power are recognized, sound signals sound and indicator lights

Display flashing

One-key control of continuous use function - Function 1: press the trigger to start working, release the trigger means to stop pressurizing, continue to increase the pressure until the jump pressure piston returns to the initial position. Function 2: Press the trigger to start working, release the trigger means to stop pressurizing, continue to increase the pressure to jump pressure piston back, press the trigger.

piston back to stop, continue to press the switch machine into a new pressing work. Function 3: press the trigger to start working, loosen the trigger said stop pressure, continue to pressure the pressure rise to jump after pressing back press the trigger to stop back, continue to press the trigger to jump after the pressure not to put the trigger piston automatically stop after back to the last stop bit, can choose any size position twice in the case of not to put the trigger automatically stop location choice.

When the temperature sensor makes the total stop working, the temperature exceeds 60℃, and the failure signal appears for a long time, which means that the tool cannot continue to work until the temperature drops to normal.Emeads Multifunctional hydraulic crimping tool comes with a one year warranty.

Product Description

Model No:	EB-300
Cutting force:	60KN
Stroke:	17mm
Cutting times:	120times(Saturation voltage)
Crimp cycle:	6-18s(Depends on the size of the cable)
Voltage/capacity:	18v/5.0Ah
Net weight(with battery):	6.4kg
Charging time:	1.5hours
Package:	plastic box
ACCESSORIES
Crimping die:	16,25,35,50,70,95,120,150,185,240,300mm2
Battery:	2pcs
Charger:	1pc
Cylinder seal ring:	1set
Safety valve seal ring:	1set

* Microcomputer control system, automatic pressure detection when pressing, double safety protection, with three continuous computer memory pressing function operation.

* The tool is equipped with a dual plunger pump that features quick access to the connecting material and slow crimp to automatically turn to high pressure

* If deviations from the set operating pressure or low battery power are recognized, sound signals sound and indicator lights

Display flashing

* One-key control of continuous use function - Function 1: press the trigger to start working, release the trigger means to stop pressurizing, continue to increase the pressure until the jump pressure piston returns to the initial position. Function 2: Press the trigger to start working, release the trigger means to stop pressurizing, continue to increase the pressure to jump pressure piston back, press the trigger piston back to stop, continue to press the switch machine into a new pressing work.

Function 3: press the trigger to start working, loosen the trigger said stop pressure, continue to pressure the pressure rise to jump after pressing back press the trigger to stop back, continue to press the trigger to jump after the pressure not to put the trigger piston automatically stop after back to the last stop bit, can choose any size position twice in the case of not to put the trigger automatically stop location choice.

* When the temperature sensor makes the total stop working, the temperature exceeds 60℃, and the failure signal appears for a long time, which means that the tool cannot continue to work until the temperature drops to normal.
