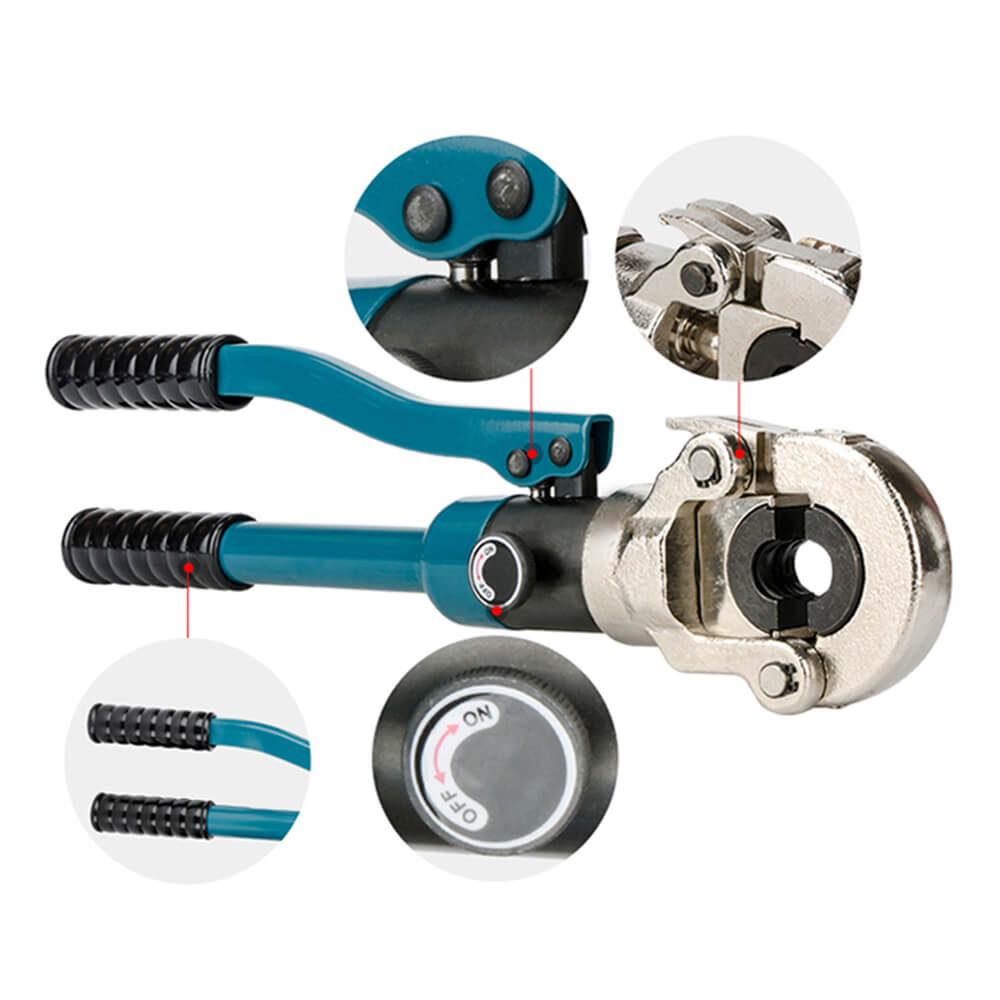

Hydraulic pipe clamp

As a professional manufacturer, EMEADS has the ability to provide hydraulic pipe clamp tools with high quality and competitive price. All of our products comply with international standards (ISO9001). We have gained a good reputation at home and abroad. Our products have been sold well in more than 30 countries including Japan, the United States, Australia, Italy, and the Middle East. We look forward to becoming your long-term partner in China.

Model:FKO-1632

Send Inquiry

Product Description

Model:FKO-1632，Hydraulic pipe clamp;Easy to carry Easy operate；Mold configure：Die configuration for stainless steel crimping (hexagon confining pressure)：φ15，φ20，φ25 Die configuration of aluminum plastic pipe crimping (round confining pressure),A mould:φ16，φ20，φ25(26)，φ32 ,B mould:φ16，φ20，φ25，φ32;Three kinds die selection-Different mold configuration, the same hydraulic clamp,Mold A for aluminum plastic pipe: 2 convex grooves in the inner circle, used to make aluminum plastic pipe by pressing,Mold B for aluminum plastic pipe: 3 convex grooves inside, suitable for crimping aluminum plastic pipe,Stainless steel mold: hexagonal 2 convex groove, suitable for crimping stainless steel pipe.

Product Parameters

Model		FKO-1632
Output	10T	Bstroke	/
Weight	3.15kg(without package)	Size	380mm length
Mold configure		Die configuration for stainless steel crimping (hexagon confining pressure)：φ15，φ20，φ25Die configuration of aluminum plastic pipe crimping (round confining pressure)A mould:φ16，φ20，φ25(26)，φ32B mould:φ16，φ20，φ25，φ32

Corresponding pipe fitting parameter table

Please confirm outside diameter of stainless steel pipe , correspondingtable parameters before purchase,please note whether your stainless steel pipe is series I or II
Nominal diameter	Series l (mm)	Series ll (mm)	Pipe thickness (mm)
DN15	16	16	0.8
DN20	20	22.2	1
DN25	25.4	28.6	1
DN32	32	34	1.2
DN40	40	42.7	1.2
DN50	50.8	48.6	1.2
DN60	63.5	63.5	1.5
DN65	76.1	76.1	1.8
DN80	88.9	88.9	1.8
DN100	101.6	108	1.8
