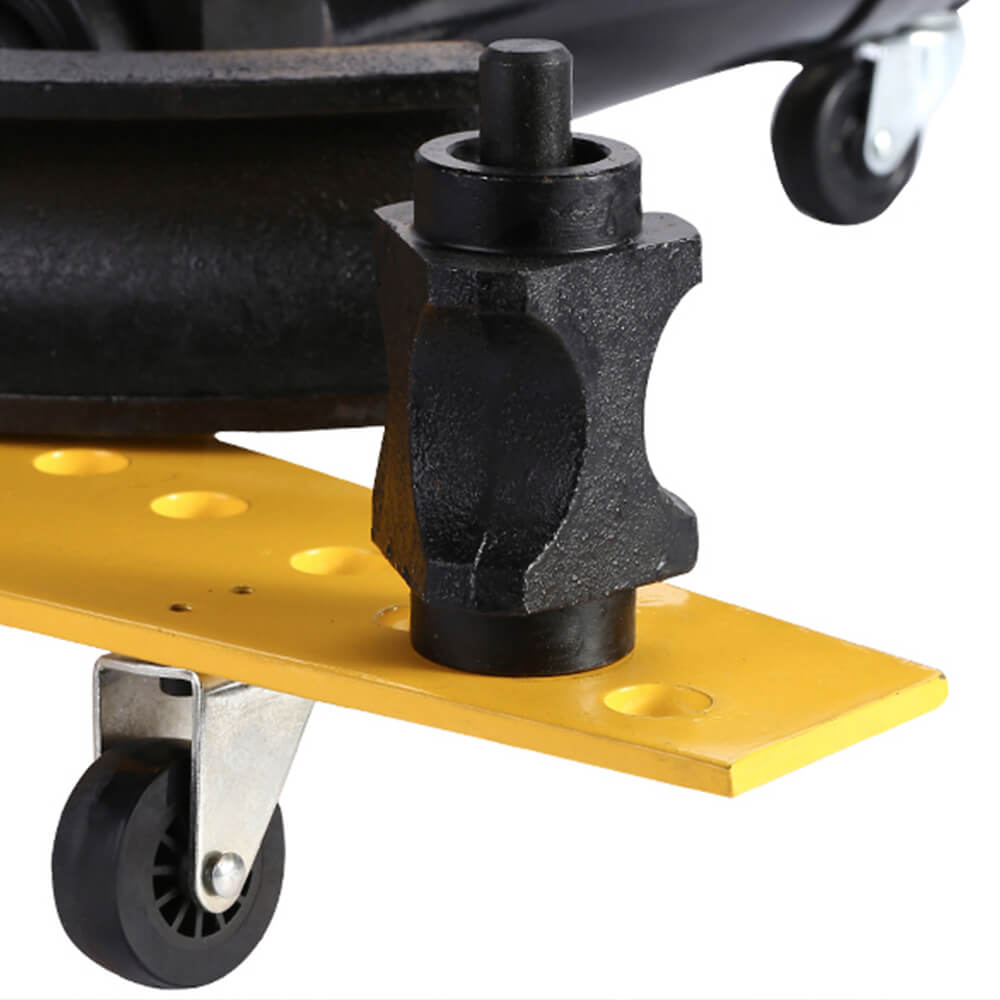

DWG series split hydraulic pipe bender tool

The China EMEADS specializes in hydraulic pipe clamping tool. The split-type hydraulic pipe fittings tool is a professional tool for quick installation and disassembly of high-pressure hydraulic pipe fittings. It is suitable for all kinds of hydraulic systems, such as engineering machinery, cars, ships, etc. It can quickly and accurately complete the installation and disassembly of hydraulic pipe fittings. EMEADS has a wide range of business and a rich product line. You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Hydraulic Crimping Tools. We look forward to cooperating with you.

Model:DWG-1/2/3/4/5

Send Inquiry

Product Description

Model:DWG-1/2/3/4/5,DWG series split hydraulic pipe bender;Pump matching Strong bending force;① According to their own needs to choose the diameter of the elbow, the corresponding standard die size selection pipe bender ② If there is no corresponding mold, you can choose a slightly larger size mold (such as 20mm, 22mm mold) ③ Check whether the wall thickness is suitable according to the correspon- ding die size (the wall thickness can be 0.5 larger or 0.5 smaller).

Product Parameters

Model	1 inch	2 inch	3 inch	4inch	5 inch
Output	10T	16T	18T	21T	21T
Stroke(mm)	160	230	320	380	380
Pipe wall thick(mm)	2-3.5	2.75-4.5	3.5-6	4-6	4-6
Work scope(mm)	13-34	22-60	22-89	22-108	22-114
Overall weight(kg)	20	50	95	200	230
Material	ductile iron	ductile iron	ductile iron	ductile iron	ductile iron
Configure mold	【1 inch】：13mm/16mm/19mm/22mm/28mm/34mm【2 inch】：22mm/28mm/34mm/42mm/48mm/60mm【3 inch】：22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm【4 inch】：22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm【5 inch】：22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm/114mm

Die diameter and wall thickness

Reference Diameter	Pipe Wall Thickness Range	Conventional Nam	Mold Specification
Φ13mm	1.5mm-4mm	2 point	1/4
Φ16mm	1.5mm-4mm	3 point	5/16
Φ19mm	1.5mm-4mm	3 point	3/8
Φ22mm	2.5mm-4mm	4 point	1/2
Φ28mm	2.5mm-4mm	6 point	3/4
Φ34mm	2.5mm-4mm	8 point	1 inch
Φ42mm	2.5mm-4mm	1.25 inch	1-1/4 inch
Φ48mm	2.5mm-4mm	1.5 inch	1-1/2 inch
Φ60mm	3.0mm-5mm	2 inch	2 inch
Φ75.5mm	3.0mm-6mm	2.5 inch	2-1/2 inch
Φ89mm	3.5mm-6mm	3 inch	3 inch
Φ108mm	4.0mm-6mm	4 inch	4 inch
Φ114mm	4.0mm-6mm	5 inch	5 inch
