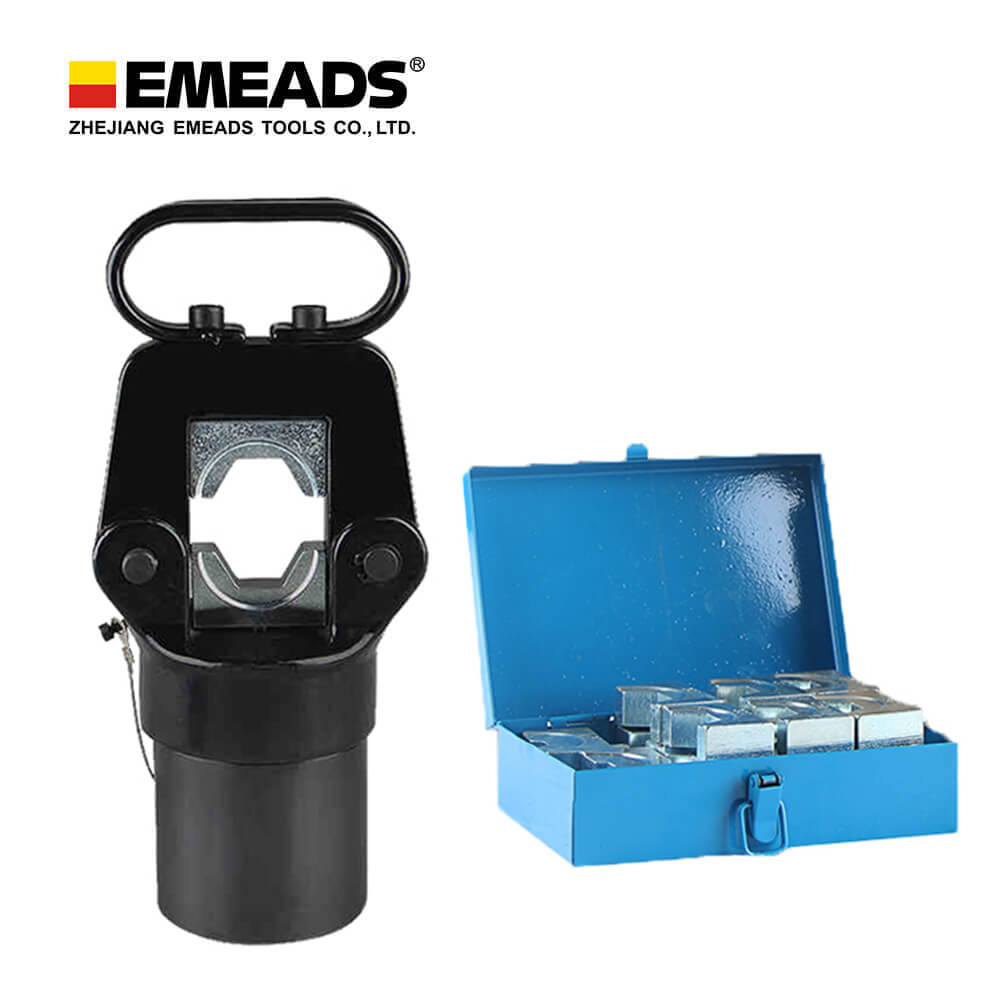

Co-60s large tonnage split crimping pliers
  • Co-60s large tonnage split crimping pliersCo-60s large tonnage split crimping pliers
  • Co-60s large tonnage split crimping pliersCo-60s large tonnage split crimping pliers
  • Co-60s large tonnage split crimping pliersCo-60s large tonnage split crimping pliers
  • Co-60s large tonnage split crimping pliersCo-60s large tonnage split crimping pliers
  • Co-60s large tonnage split crimping pliersCo-60s large tonnage split crimping pliers

Co-60s large tonnage split crimping pliers

As the professional manufacture, we would like to provide you Battery Hydraulic Crimping Tool .EMEADS is capable to provide the Battery Hydraulic Crimping Tool with high quality and competitive price. All of our products are up to the international standard(ISO9001). We have received a good reputation both at home and abroad. Our products have been well sold to more than 30 countries,such as Japan, America, Australia,Italy, and the middle east, etc. We look forward to becoming your long-term partner in China.

Model:CO-60S

Send Inquiry

Product Description

Model:CO-60S (single circuit),large tonnage split crimping pliers Strong resistance to tension Press tight;Product features:Special selection of high carbon steel materials, raw materials CNC computer processing,tensile strength;The maximum casing size is φ65mm, the crimping surface is wide and the crimping times are less, which can reduce the crimping deformation and control the elongation;The double acting hydraulic cylinder can avoid the problem of spring fatigue and slow reset,and shorten the reset time of piston;The movable die cover can help the operator to take out the die easily after crimping;The rotary die cover can be opened and closed quickly, which makes the operation and positioning easier;Simple design, easy maintenance;It must be equipped with double oil circuit hydraulic electric pump or gasoline enginepump.The pump is not included in the factory. Customers can choose it freely The mold is not included in the factory, and the specific mold specifications and models need to be matched according to the customer's needs.

Product Parameters

Model CO-60S (single circuit) Output 60T
Piston stroke 22mm Crimping form Hexagon confining pressure
Net weight About 21.5 (excluding mould) Packing Wooden case, weighing about 2kg
Net weight of mould About 2.5kg per pair Package size 250×215×355mm
Crimping range Steel aluminum terminal bushing φ55 copper bushing 630mm2
Product features Special selection of high carbon steel materials, raw materials CNC computer processing, tensile strength;The maximum casing size is φ65mm, the crimping surface is wide and the crimping times are less, which can reduce the crimping deformation and control the elongation;The double acting hydraulic cylinder can avoid the problem of spring fatigue and slow reset, and shorten the reset time of piston;The movable die cover can help the operator to take out the die easily after crimping;The rotary die cover can be opened and closed quickly, which makes the operation and positioning easier;Simple design, easy maintenance;It must be equipped with double oil circuit hydraulic electric pump or gasoline enginepump. The pump is not included in the factory. Customers can choose it freelyThe mold is not included in the factory, and the specific mold specifications and models need to be matched according to the customer's needs
The factory does not contain moulds, and is required to be matched according to customer requirements. The dies are divided into steel dies and aluminum moulds.
